## Introduction

* [Link to Paper](http://arxiv.org/pdf/1412.6071v4.pdf)
* Spatial pooling layers are building blocks for Convolutional Neural Networks (CNNs).
* Input to pooling operation is a $N_{in}$ x $N_{in}$ matrix and output is a smaller matrix $N_{out}$ x $N_{out}$.
* Pooling operation divides $N_{in}$ x $N_{in}$ square into $N^2_{out}$ pooling regions $P_{i, j}$.
* $P_{i, j}$ ⊂ $\{1, 2, . . . , N_{in}\}$ $\forall$ $(i, j) \in \{1, . . . , N_{out} \}^2$

## MP2

* Refers to 2x2 max-pooling layer.
* Popular choice for max-pooling operation.

### Advantages of MP2
* Fast.
* Quickly reduces the size of the hidden layer.
* Encodes a degree of invariance with respect to translations and elastic distortions.

### Issues with MP2
* Disjoint nature of pooling regions.
* Since size decreases rapidly, stacks of back-to-back CNNs are needed to build deep networks.

## FMP

* Reduces the spatial size of the image by a factor of *α*, where *α ∈ (1, 2)*.
* Introduces randomness in terms of choice of pooling region.
* Pooling regions can be chosen in a *random* or *pseudorandom* manner.
* Pooling regions can be *disjoint* or *overlapping*.

## Generating Pooling Regions

* Let $a_i$ and $b_i$ be 2 increasing sequences of integers, starting at 1 and ending at $N_{in}$.
* Increments are either 1 or 2.
* For *disjoint regions, $P = [a_{i−1}, a_{i − 1}] × [b_{j−1}, b_{j − 1}]$
* For *overlapping regions, $P = [a_{i−1}, a_i] × [b_{j−1}, b_j 1]$
* Pooling regions can be generated *randomly* by choosing the increment randomly at each step.
* To generate pooling regions in a *peusdorandom* manner, choose $a_i$ = ceil($\alpha | (i+u))$, where $\alpha \in (1, 2)$ with some $u \in (0, 1)$.
* Each FMP layer uses a different pair of sequence.
* An FMP network can be thought of as an ensemble of similar networks, with each different pooling-region configuration defining a different member of the ensemble.

## Observations

* *Random* FMP is good on its own but may underfit when combined with dropout or training data augmentation.
* *Pseudorandom* approach generates more stable pooling regions.
* *Overlapping* FMP performs better than *disjoint* FMP.

## Weakness

* No justification is provided for the observations mentioned above.
* It needs to be seen how performance is affected if the pooling layer in architectures like GoogLeNet.

Introduction

Link to Paper
Spatial pooling layers are building blocks for Convolutional Neural Networks (CNNs).
Input to pooling operation is a $N_{in}$ x $N_{in}$ matrix and output is a smaller matrix $N_{out}$ x $N_{out}$.
Pooling operation divides $N_{in}$ x $N_{in}$ square into $N^2_{out}$ pooling regions $P_{i, j}$.
$P_{i, j}$ ⊂ $\{1, 2, . . . , N_{in}\}$ $\forall$ $(i, j) \in \{1, . . . , N_{out} \}^2$

MP2

Refers to 2x2 max-pooling layer.
Popular choice for max-pooling operation.

Advantages of MP2

Fast.
Quickly reduces the size of the hidden layer.
Encodes a degree of invariance with respect to translations and elastic distortions.

Issues with MP2

Disjoint nature of pooling regions.
Since size decreases rapidly, stacks of back-to-back CNNs are needed to build deep networks.

FMP

Reduces the spatial size of the image by a factor of α, where α ∈ (1, 2).
Introduces randomness in terms of choice of pooling region.
Pooling regions can be chosen in a random or pseudorandom manner.
Pooling regions can be disjoint or overlapping.

Generating Pooling Regions

Let $a_i$ and $b_i$ be 2 increasing sequences of integers, starting at 1 and ending at $N_{in}$.
Increments are either 1 or 2.
For *disjoint regions, $P = [a_{i−1}, a_{i − 1}] × [b_{j−1}, b_{j − 1}]$
For *overlapping regions, $P = [a_{i−1}, a_i] × [b_{j−1}, b_j 1]$
Pooling regions can be generated randomly by choosing the increment randomly at each step.
To generate pooling regions in a peusdorandom manner, choose $a_i$ = ceil($\alpha | (i+u))$, where $\alpha \in (1, 2)$ with some $u \in (0, 1)$.
Each FMP layer uses a different pair of sequence.
An FMP network can be thought of as an ensemble of similar networks, with each different pooling-region configuration defining a different member of the ensemble.

Observations

Random FMP is good on its own but may underfit when combined with dropout or training data augmentation.
Pseudorandom approach generates more stable pooling regions.
Overlapping FMP performs better than disjoint FMP.

Weakness

No justification is provided for the observations mentioned above.
It needs to be seen how performance is affected if the pooling layer in architectures like GoogLeNet.

Your comment:

[link] Summary by Alexander Jung 7 years ago

  * Traditionally neural nets use max pooling with 2x2 grids (2MP).
  * 2MP reduces the image dimensions by a factor of 2.
  * An alternative would be to use pooling schemes that reduce by factors other than two, e.g. `1 < factor < 2`.
  * Pooling by a factor of `sqrt(2)` would allow twice as many pooling layers as 2MP, resulting in "softer" image size reduction throughout the network.
  * Fractional Max Pooling (FMP) is such a method to perform max pooling by factors other than 2.

### How
  * In 2MP you move a 2x2 grid always by 2 pixels.
  * Imagine that these step sizes follow a sequence, i.e. for 2MP: `2222222...`
  * If you mix in just a single `1` you get a pooling factor of `<2`.
  * By chosing the right amount of `1s` vs. `2s` you can pool by any factor between 1 and 2.
  * The sequences of `1s` and `2s` can be generated in fully *random* order or in *pseudorandom* order, where pseudorandom basically means "predictable sub patterns" (e.g. 211211211211211...).
  * FMP can happen *disjoint* or *overlapping*. Disjoint means 2x2 grids, overlapping means 3x3.

### Results
  * FMP seems to perform generally better than 2MP.
  * Better results on various tests, including CIFAR-10 and CIFAR-100 (often quite significant improvement).
  * Best configuration seems to be *random* sequences with *overlapping* regions.
  * Results are especially better if each test is repeated multiple times per image (as the random sequence generation creates randomness, similar to dropout). First 5-10 repetitions seem to be most valuable, but even 100+ give some improvement.
  * An FMP-factor of `sqrt(2)` was usually used.


![Examples](https://raw.githubusercontent.com/aleju/papers/master/neural-nets/images/Fractional_Max_Pooling__examples.jpg?raw=true "Examples")

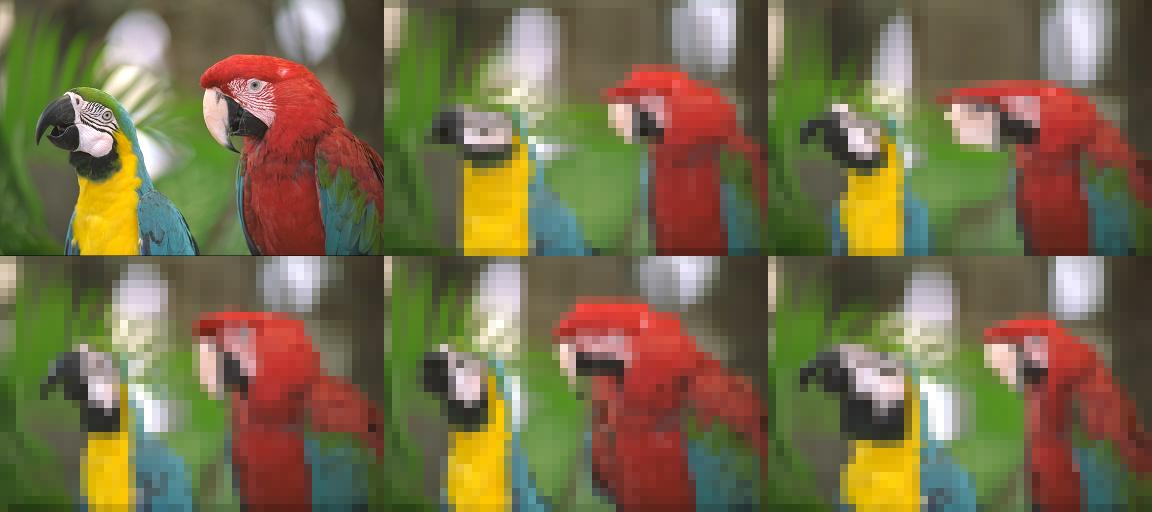

*Random FMP with a factor of sqrt(2) applied five times to the same input image (results upscaled back to original size).*

-------------------------
